GCS LOW-VOLTAGE WITHDRAWABLE COMPLETER SWITCHGEAR
Product Parameters
Product Description:
This mechanism can be operated manually or electrically. Manual combination of grounding switchand isolating switch The operating mechanism of this ring network cabinet is strong in completeness, small in size, without combustion and explosion hazards, and has reliable "five prevention" functions.

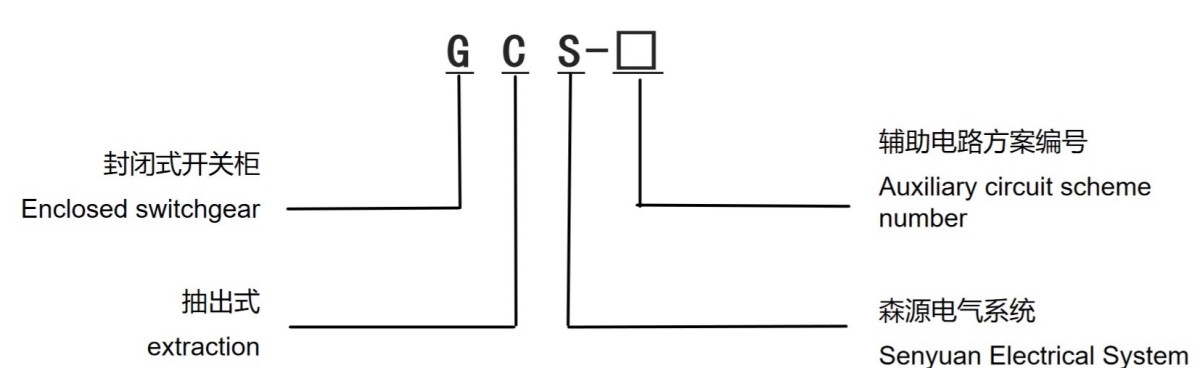

Product mode and implication:
Service environment conditions:
◆Surrounding air temperature:-5 ℃~+40 ℃,with a daily average temperature not exceeding+35 ℃. It is necessary to reduce passenger traffic according to the actual situation;
◆Altitude: 2000m and below;
◆Relative humidity: does not exceed 50% at the highest temperature of+40 ℃,and allows for significant relative humidity at lower temperatures(such as 90% at+20 ℃), which should be considered due to temperature The changes may occasionally have the effect of condensation;
◆When installing the equipment,the inclination from the vertical plane shall not exceed 5°,and the entire set of cabinets shall be relatively flat;
◆The equipment should be installed in a place without severe vibration and impact, as well as in a place where electrical components and materials are not corroded due to use;
◆If users have special requirements, they can negotiate with our company's technical engineers to solve them.
Ordering instruction:
When placing an order, the user must provide the following information:
◆Full model of the product,including circuit scheme number and auxiliary circuit scheme number;
◆Main circuit system combination sequence diagram;
◆Electrical schematic diagram of auxiliary circuit;
◆List of components inside the cabinet;
◆Setting parameters such as voltage, current, and time in the circuit;
◆Other special requirements that do not comply with the normal use of the product.
