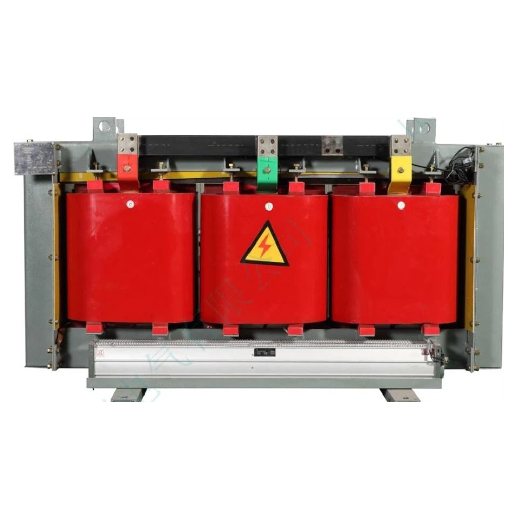

SCBH15-M SERIES AMORPHOUS ALLOY DRY-TYPE TRANSFORMER
Amorphous alloy dry-type transformer is a new kind of low loss dry type transformer model.Due to inherit the traditional dry-type transformer's advantages of high reliability,flame retardant,and maintenance free,amorphous alloy dry type transformer has a wide development prospect in market distribution transformer.
Product Parameters
1. Product description
Amorphous alloy dry-type transformer is a new kind of low loss dry type transformer model.Due to inherit the traditional dry-type transformer's advantages of high reliability,flame retardant,and maintenance free,amorphous alloy dry type transformer has a wide development prospect in market distribution transformer.
2. Product features
◆SCBH15 amorphous alloy dry-type transformer is a new generation of energy-saving transformer.
◆The material of core adopts amorphous alloy whose no-load loss can be reduced by more than 75% than ordinary S11using silicon steel sheet as the core.
3. Scope of application
The transformer is suitable for high-rise buildings,commercial center,subway,airport,station,industrial and mining enterprises or power plants as well as to the highly energy-saving demanding outdoor place.
4. Technical parameters
