Power Distribution Cabinet
Product Parameters
Brief Introduction:
XL-21 series power distribution cabinets are suitable for power plants, industrial and mining enterprises,three-phase three wire, three-phase four wire,and three-phase five wire systems with AC voltage of 550V and below,and are widely applicable Used for indoor and outdoor power lighting distribution in industrial and mining enterprises, metallurgical and chemical industries, hotels and banks,stations and docks, rail transit,etc.If used outdoors,please contact the equipment manufacturer Negotiate and resolve.
Product model and implication
Service environmental conditions
◆Environmental temperature:-5℃-+40℃,with an average temperature within 24 hours not exceeding+35℃;
◆Altitude:2000m and below;
◆Atmospheric conditions:The air is clean,and the relative humidity does not exceed 50%at the highest temperature of+40℃.A relatively high relative humidity is allowed at lower temperatures (such as 90%at+20℃),and the impact of occasional condensation due to temperature changes should be considered;
◆This device is suitable for the transportation and storage process of the following temperatures:within the range of -25℃to+55℃,it can reach+70℃ in a short period of time(not exceeding 24 hours).Under these extreme temperatures,the device should not be damaged irreparably and should be able to work normally under the above conditions;
◆lf the above usage conditions cannot be met,it should be resolved through negotiation between the user and the manufacturer;
◆When this device is used on offshore oil drilling and production platforms and nuclear power plants,a separate technical agreement should be signed.
Ordering instruction
When placing an order,the user must provide the following information:
◆Primary line scheme and single line system diagram;
◆ Schematic diagram of secondary wiring diagram;Outline dimensions of the box.

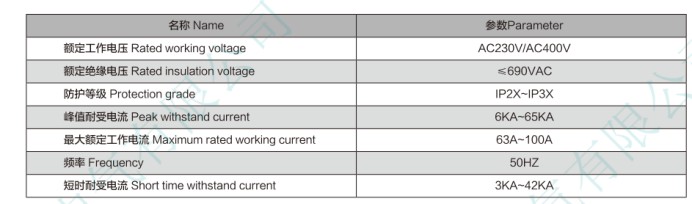

Technical parameters
Structure features
◆Indoor structure;
◆Made by bending and welding the diamond plate;
◆Various components can be assembled according to the GB7251 standard according to user requirements;
◆Reliable N line,PE line,and PEN line are installed inside the cabinet, ensuring grounding continuity;
◆All incoming and outgoing lines are made of electric cables, and the doors and boxes are sealed with rubber sheets;
◆No need for door keys and special tools to ensure that all doors cannot be opened.
Related products
![10KV D11 SINGLE-PHASE DISTRIBUTION TRANSFORMER]( "10KV D11 SINGLE-PHASE DISTRIBUTION TRANSFORMER")

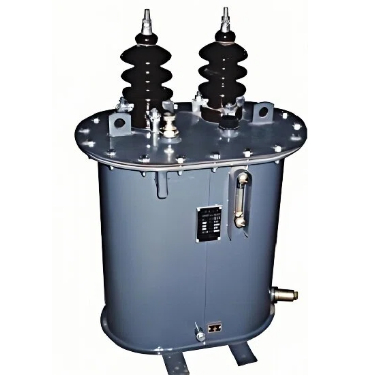

10KV D11 SINGLE-PHASE DISTRIBUTION TRANSFORMERSingle-phase distribution transformer is small in size and light in weight,which could to go into load center as deep as possible,shorten the radius of low-voltage network and reduce the loss.![10KVS11-M SERIESHERMETICALLY SEALEDOIL-IMMERSED POWER TRANSFORMER]( "10KVS11-M SERIESHERMETICALLY SEALEDOIL-IMMERSED POWER TRANSFORMER")

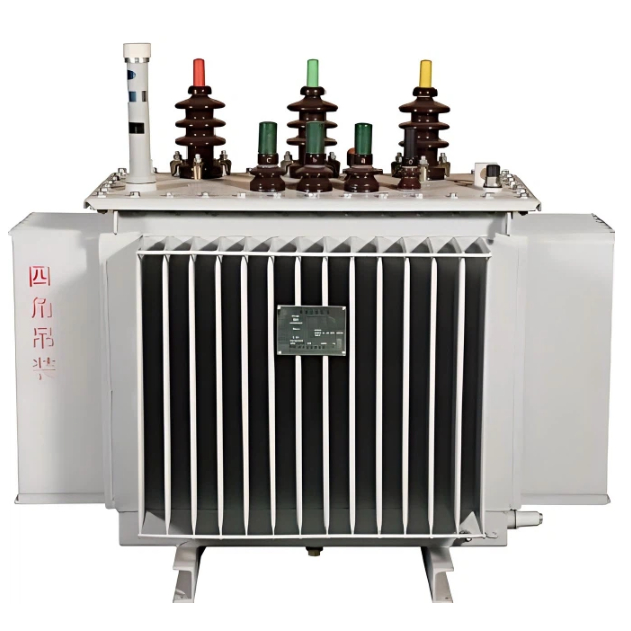

10KVS11-M SERIESHERMETICALLY SEALEDOIL-IMMERSED POWER TRANSFORMERS11-Mserieshermetically sealedoil-immersed power transformer has the advantage of low loss, low noise and high efficiency,which can obtain good energy-saving effect and reduce pollution.Compared with ordinary oil-immersed transformer,hermetically sealed transformers don't need oil conservator,oil volume is automatically regulated and compensated by elastic corrugated sheet of corrugated tank.![10KV SC(B)10 SERIES OF EPOXY RESIN CAST DRY-TYPE TRANSFORMER]( "10KV SC(B)10 SERIES OF EPOXY RESIN CAST DRY-TYPE TRANSFORMER")

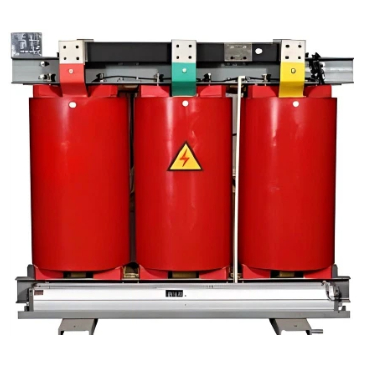

10KV SC(B)10 SERIES OF EPOXY RESIN CAST DRY-TYPE TRANSFORMERThe transformer rely on air convection for cooling.With the increasing of urban power load,the crowded residential and high-rise buildings.underground structures there is an urgent need in transformer with these advantages further load center,preventing fire or explosion and super environmental performance,and dry-type transformer meet these requirements.![SPECIAL TRANSFORMER-RECTIFIER TRANSFORMER]( "SPECIAL TRANSFORMER-RECTIFIER TRANSFORMER")
SPECIAL TRANSFORMER-RECTIFIER TRANSFORMERRectifier transformer is the power transformer of rectifier device.Industrial use of rectifier direct current power is mostly got by alternating current power grid through the rectifier transformer and rectifier devices.It is mainly used in electrochemical industry(industry using rectifier transformer mostly)、traction with direct current power supply、transmission with direct current power supply and other fields.![PHOTOVOLTAIC/WIND BOX SUBSTATION]( "PHOTOVOLTAIC/WIND BOX SUBSTATION")
PHOTOVOLTAIC/WIND BOX SUBSTATIONThe pre packaged box type substation for wind power generation is a complete substation that pre manufactures and assembles the wind power generation supporting booster station in the factory,including auxiliary equipment such as booster transformers,high-voltage and low-voltage switches,and power transformers,configured in a common enclosure and passed type tests.![PREINSTALLED TYPE SUBSTATION (EUROPEAN STYLE OF BOX TRANSFORMER)]( "PREINSTALLED TYPE SUBSTATION (EUROPEAN STYLE OF BOX TRANSFORMER)")
PREINSTALLED TYPE SUBSTATION (EUROPEAN STYLE OF BOX TRANSFORMER)The YB series preinstalled substation is a series of products designed and developed by our company to meet the needs of urban network construction.This series of products is a combination of medium voltage switchgear and transformer complete set of power distribution equipment consisting of a certain wiring scheme and low-voltage distribution equipment.![Power Distribution Cabinet]( "Power Distribution Cabinet")
Power Distribution CabinetXL-21 series power distribution cabinets are suitable for power plants, industrial and mining enterprises,three-phase three wire, three-phase four wire,and three-phase five wire systems with AC voltage of 550V and below,and are widely applicable Used for indoor and outdoor power lighting distribution in industrial and mining enterprises, metallurgical and chemical industries, hotels and banks,stations and docks, rail transit,etc.If used outdoors,please contact the equipment manufacturer Negotiate and resolve.![GCK LOW-VOLTAGE WITHDRAWABLE COMPLETE SWITCHAGEAR]( "GCK LOW-VOLTAGE WITHDRAWABLE COMPLETE SWITCHAGEAR")
GCK LOW-VOLTAGE WITHDRAWABLE COMPLETE SWITCHAGEARGCK(functionally equivalent or superior to GCL) low-voltage withdrawable switchgear(here in after referred to as "switchgear") is suitable for AC three-phase four wire and three-phase five wire systems with a rated working voltage of 380V. It is used for power plants,substations, industrial and mining enterprises, and high-rise buildings in the power system for receiving,feeding,reactive power compensation,energy metering, lighting,and centralized control of motors.![10KVS11-M.ZT/S13-M.ZT SERIESON LOAD CAPACITY REGULATING POWER TRANSFORMER]( "10KVS11-M.ZT/S13-M.ZT SERIESON LOAD CAPACITY REGULATING POWER TRANSFORMER")

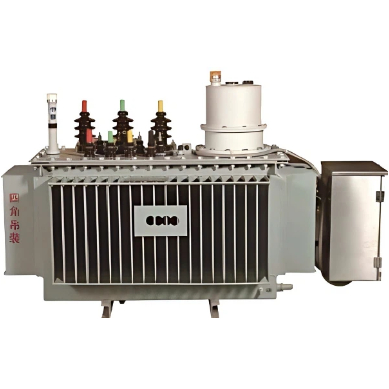

10KVS11-M.ZT/S13-M.ZT SERIESON LOAD CAPACITY REGULATING POWER TRANSFORMERLoad capacity regulating power transformer produced by us is a new type energy saving distribution transformer,the product has two kinds of rated capacity,the principle is that in the case of uninterrupted power supply,the transformer track the load changers through the intelligent system,automatically change its capacity according to the size oielectrical load.![35KVS11,SZ11 SERIES OIL-IMMERSED POWER TRANSFORMER]( "35KVS11,SZ11 SERIES OIL-IMMERSED POWER TRANSFORMER")
