ARMORED CENTRAL ALTERNATING CURRENT METAL ENCLOSED SWITCHGEAR

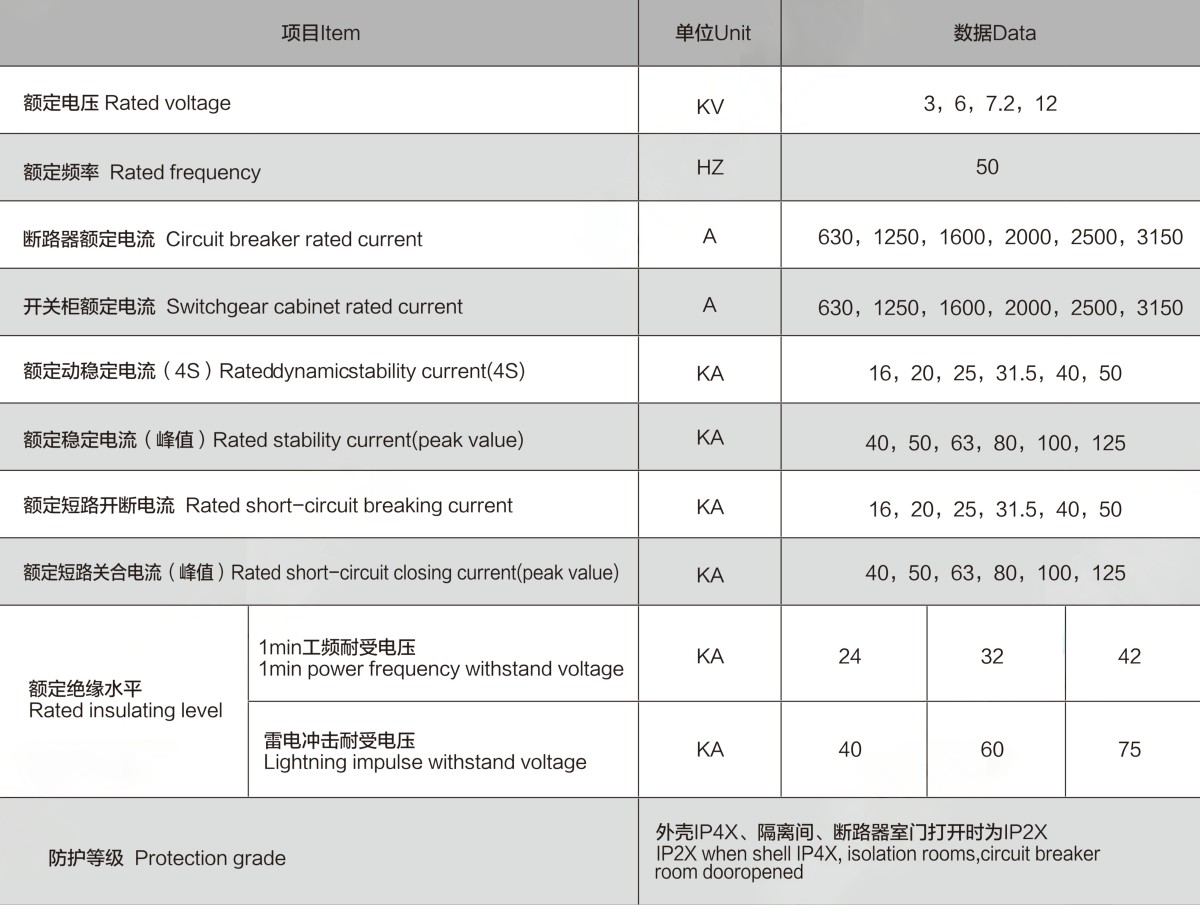

Product Parameters
Product Description:
KYN28A-12 armored mid mounted AC metal enclosed switchgear(here in after referred to asswitchgear) is a new type of product designed and developed by our company on the basis of absorbing advanced manufacturing technology at home and abroad. It can replace various old metal enclosed switchgear and is suitable for 3.6-12KV three-phase 50Hz power grids. It is used for receiving and distributing electrical energy,and for controlling,monitoring,and protecting circuits.Can be used for single bus, single bus segmented systems, or dual bus systems. The switchgear complies with the requirements of IEC298"AC Metal Enclosed Switchgear and Control Equipment for Rated Voltages above 1KVand 12KVand Below", IEC694"Common Terms for High Voltage Switchgear and Control Equipment",GB3906"3.6-40.5KVAC Metal Enclosed Switchgear" and DL404"Indoor AC High Voltage Switchgear Order Conditions"in China, and DIN.VDE0670"AC Switchgear for Rated Voltages above 1KV" in Germany. And it has complete and reliable anti miss operation functions.

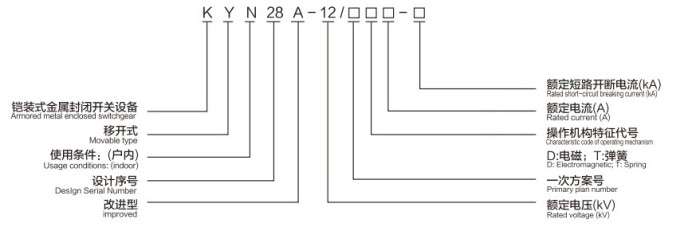

Product mode and implication:
Service environment conditions:
◆Surrounding air temperature:upper limit+40℃,lower limit-10℃
◆Altitude:not higher than 1000m3
◆Relative humidity: The daily average relative humidity shall not exceed 95%,and the monthly average relative humidity shall not exceed 90%.
◆Seismic intensity:not exceeding 8 degrees
◆No fire, explosion hazard, severe pollution, chemical corrosion, or severe vibration in the environment
◆When the usage conditions exceed the above range, the user should negotiate with our company to determine the allowable range and technical measures
Ordering instruction:
◆The supply scope of the 10KV handcart switchgear is determined based on the configuration wiring diagram provided by the purchaser.
◆All switch cabinets are equipped with relays, meters and secondary control equipment in accordance with the secondary wiring diagrams provided by the design institute.
◆The switch cabinet includes terminal blocks, switches, and switches connected to the outside. The secondary wiring inside the cabinet is complete according to the secondary wiring diagram.
Technical instruction:
