AMERICAN STYLE BOX TRANSFORMER SUBSTATION
Product Parameters
1. Product description:
As an important power supply unit in the cabled distribution network,ZGS11-10 is a complete preinstalled product that integrates high-voltage control,protection, substation,and distribution equipment and is widely used in urban and rural distribution networks.
This product places high-voltage load switches and high-voltage fuses in transformer oil,and has two structural forms:co box or sub box with the transformer body.
The oil tank adopts a fully sealed structure,equipped with an oil temperature gauge and oil level gauge.Components such as pressure gauges,pressure relief valves,and oil drain valves are used to monitor the operation of transformers.This product is divided into ring network,terminal,and power supply modes.n order to make this product more suitable for the actual requirements of China's power grid,the company has also introduced plug-in dry type fuses,and the melting of the fuse does not affect the performance of transformer oil.According to the complexity of low-voltage feedback requirements,ZGS11-10 products are divided into three shell forms: standard,reinforced and comprehensive,allowing users and design units to achieve more flexibility and economy in selection.

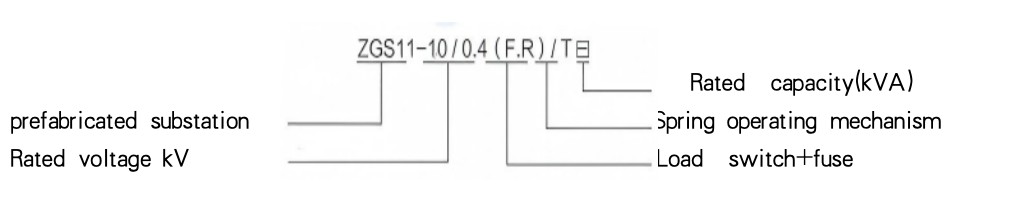

2.Product model and implication
3.Service environmental conditions
◆Altitude:not exceeding 1000m;
◆Environmental temperature: not higher than+40℃ and not lower than-30℃;
The daily average temperature difference shall not exceed 30℃;The annual average temperature difference shall not exceed 20℃;The wind speed shall not exceed 35m/s;The pollution level shall not exceedⅢ;
◆ Installation site:No explosion hazard,chemical corrosion,and severe vibration;Installed on a cement platform or other flat and solid platform;Air self cooling(AN).
4.Installation,use,maintenance,order
◆After the product is suspended on the foundation,tighten the anchor bolts,and then install the inlet and outlet wires.After comprehensive inspection,power can be transmitted;
◆To replace the high-voltage fuse,the switch should be disconnected first before opening the door to enter Operation and maintenance;
◆When checking,the power should be cut off first and carried out according to the instructions;
◆When ordering,it is necessary to indicate the model,specification,quantity,electrical component model,specification,and housing Paint color;
◆ If the user has other requirements,they can contact each other during the ordering process.
5.technical parameters
