BOX FIXED ALTERNATING CURRENT METAL-ENCLOSED SWITCHGEAR

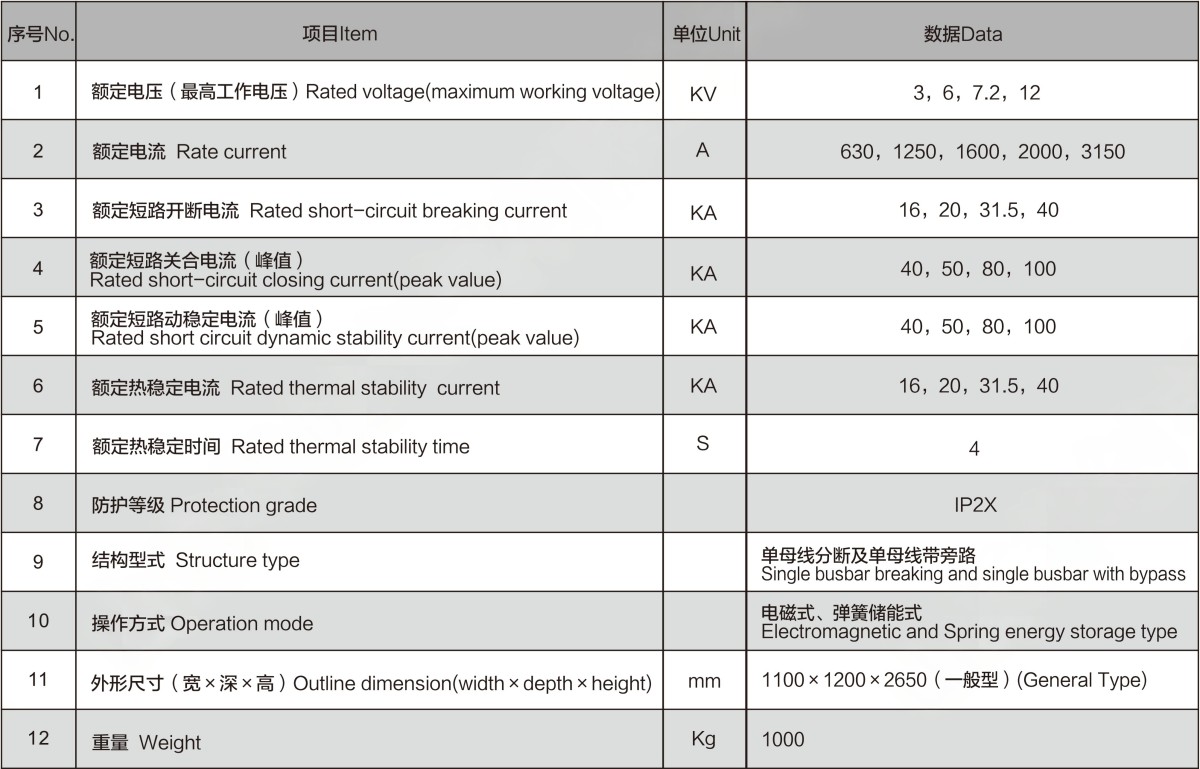

Product Parameters
Product Description:

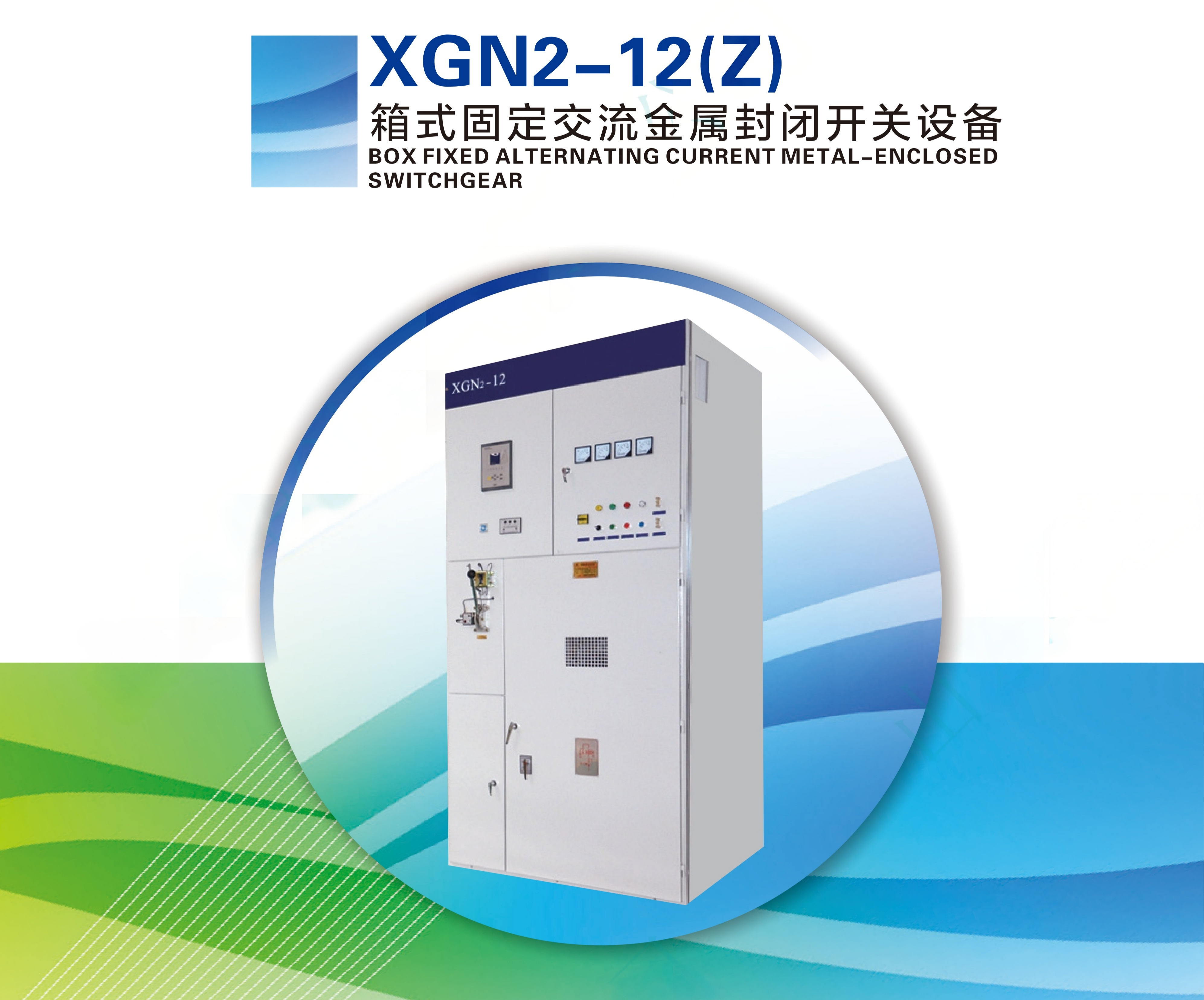

XGN2-12(Z) box type fixed AC metal enclosed switchgear (referred to as "switchgear"), suitable for rated voltage of 3.6-12KV,50HZ, rated current630A~3150A three-phase AC single bus bar, double bus bar, single bus bar with bypass system, used for receiving and distributing electrical energy. Can meet various types of power plants, substations(stations)And the usage requirements of industrial and mining enterprises.This product meets the national standards GB3906"3.6-40.5KV AC Metal Enclosed Switchgear" and IEC60298"ACMetal Enclosed Switchgear and Control Equipment According to the DL/T402 and DL/T404 standards, it meets the "five prevention" locking requirements.

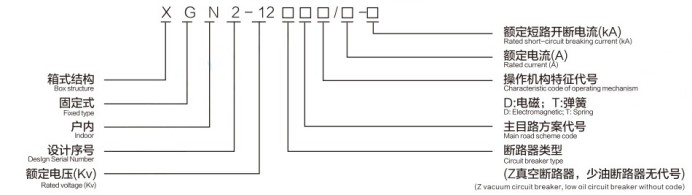

Product mode and implication:
Service environment conditions:
◆Environmental temperature: upper limit+40℃,lower limit-25℃
◆Altitude: not higher than 1000m(production can be negotiated with the company's technical department if exceeding 1000m)
◆Relative humidity:The daily average relative humidity shall not exceed 95%,and the monthly average relative humidity shall not exceed 90%
◆Earthquake intensity: not exceeding 8 degrees
◆Places without fire, explosion hazard, severe pollution, chemical corrosion,and severe vibration Ordering instruction
When placing an order,the user must provide the following information:
◆Main wiring diagram scheme number and single line series system diagram, arrangement diagram;
◆Secondary circuit wiring schematic diagram, terminal arrangement diagram, if there is no terminal arrangement diagram,follow the manufacturer's regulations;
◆Model, specification, and quantity of electrical components;
◆The material and specifications of the main bus bar and branch bus bar, otherwise they shall be made according to national standards;
◆Special environmental conditions for the use of switchgear should be proposed during ordering;
◆When accessories and spare parts are required, their types and quantities should be mentioned when ordering.
