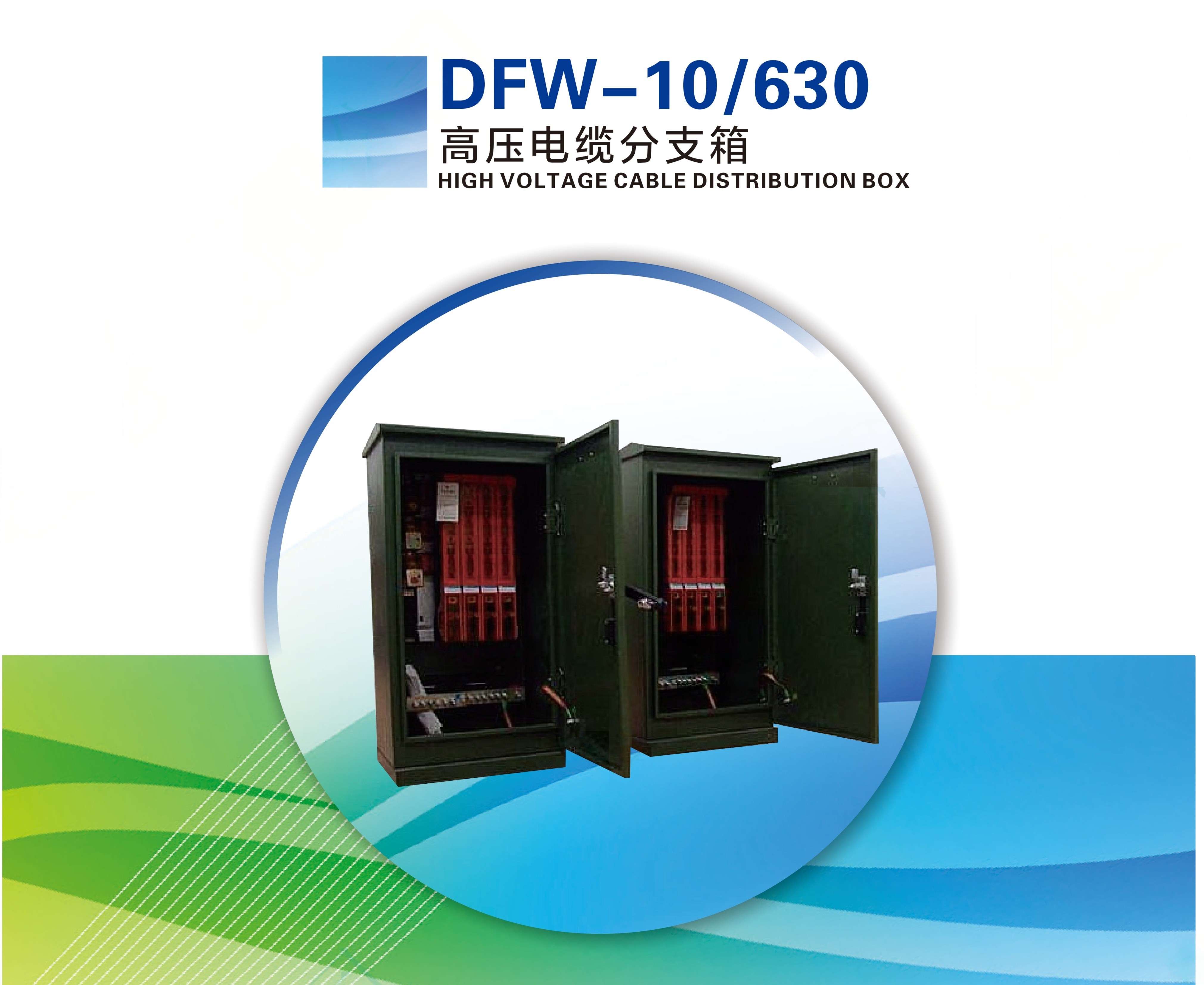

DFW-10/630 HIGH VOLTAGE CABLE DISTRIBUTION BOX
Product Parameters
Produce description
This series of cable branch boxes is suitable for outdoor distribution networks with AC 50HZ, rated voltage 12KV, and cable inlet and outlet lines. It is widely used in industrial areas, residential areas,commercial centers, mining areas, airports, railways, port areas, power stations, and other distribution networks,especially suitable for urban power grid renovation projects.With:
1)Fully insulated,fully sealed,maintenance free,reliable personal safety guarantee;
2) Simplify the urban cable network system and save investment;
3)Outdoor type,dust proof,moisture-proof,flood resistant,corrosion-resistant,with strong environmental adaptability and flexible combination.The incoming and outgoing lines can meet various wiring requirements from two to eight routes;
4)Small size,compact structure,beautiful and elegant appearance,easy installation,maintenance free,and equipped with live display,short circuit indicator,and lightning arrester
5)Small footprint,low height,beautiful appearance,and able to coordinate with the surrounding environment;Flexible and diverse wiring schemes,extremely convenient installation and operation;
6)The 200A cable head can be loaded and unplugged,and has the function of an isolation switch.It can be installed with a short circuit fault indicator to quickly determine the fault location;
7)The combination of load switches or circuit breakers with cable joints can improve the flexibility of line operation,maintenance,and repair,reduce power outage time,improve power supply reliability,replace some ring network cabinets and switching stations,and reduce the overall cost of the system.

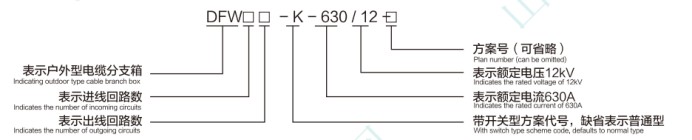

Produce model and implication
Service environment conditions
◆Altitude not exceeding 1000 meters;
◆Operating environment temperature:-30℃-+40℃;
◆Relative humidity:≤95%;
◆The surrounding air should be free from obvious combustible gas pollution, but can be contaminated by smoke, dust, and corrosive gases. The pollution level should not exceed Level IIl in GT/T5582;
◆No frequent severe vibration.
Ordering instruction
When placing an order,the user must provide the following information:
◆Primary line scheme and single line system diagram;
◆Specification and material of cable plugs;
◆ Provide the name and quantity of the auxiliary parts.
